Nqe lus piav qhia:

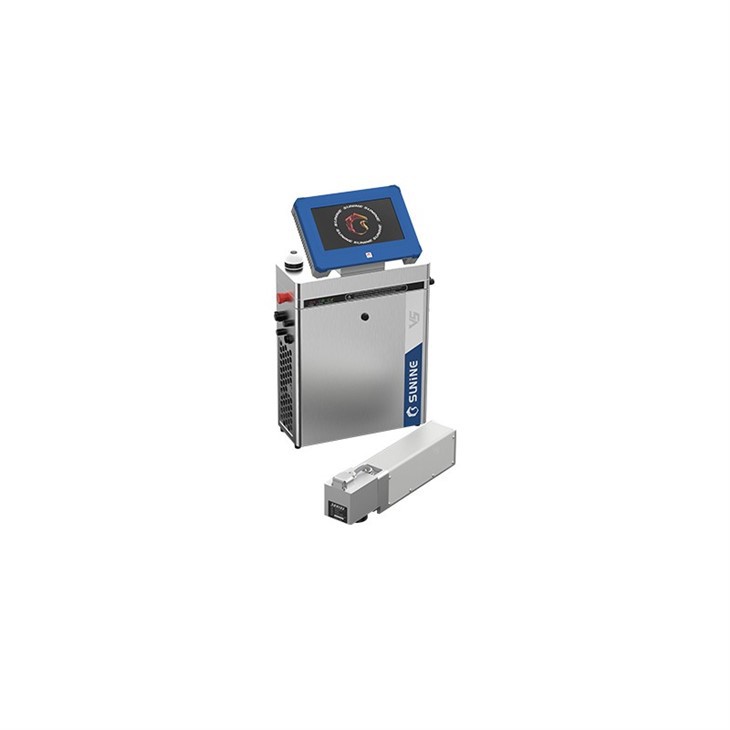

Sunine 120W Mopa thev naus laus zis suav nrog kev tswj lub laser lub sijhawm pulse, zaus, thiab lub zog tso zis. Qhov no tso cai rau cov neeg siv hloov lub laser xim los ntawm dub mus rau dawb los yog vice versa, thiab kos ib tug ntau yam ntawm cov ntaub ntawv, xws li hlau, plastics, thiab ceramics. Nrog Mopa thev naus laus zis, cov neeg siv muaj kev tswj hwm qhov tob, dav, thiab siv zog ntawm lawv cov cim.

Specification:

Qauv	D2000c-plus	D3000c-plus	D6000c-plus	D12000c-plus
Laser zog	20W	30W	60W	120W
Cov khoom siv tshuab	Anodized aluminium (Laser taub hau) & Stainless hlau (Control Unit)
Laser hom	Fiber Laser Source
Laser wavelength	1064nm ua
Scan txoj kev	High-precision 2-dimensional scanning method
Marking ceev	Tsawg dua lossis sib npaug li 18000mm / s
Main tswj	SUNINE V5 muaj kev sib koom ua ke motherboard nrog 10-inch controller
Kev khiav haujlwm	Linux
Txias qhov system	Cua txias
Hom kev cim	Ob lub dot matrix thiab vector
Reflector loj	Txheem: 8.5mm
Kos teb	Txheem: 110mm × 110mm
Txoj kev tso chaw	Red-light positioning
Kab ntawm cov cim	Tsis muaj kev txwv nyob rau hauv lub cim teb
Cov kab ntau lawm ceev	0 ~ 300m / min (nws txawv raws li cov ntaub ntawv thiab cov ntawv luam tawm)
Lus	Suav Simplified, Suav tsoos, Lus Askiv, German, Mev, Fabkis, Italian, Nyiv, Kauslim, Portuguese, Hindi, Lavxias, Turkish, Arabic, Persian, thiab lwm yam.
Cov ntaub ntawv hom	BMP/DXF/PNG/JPEG/PLT/JPG
Hom code	Code128A, Code128B, Code128C, Code39, Code93, EAN-13,PDF417, 01 Code; QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode
Fais fab mov	220V / 50-60Hz (110V yeem)
Max. noj	Tsawg dua lossis sib npaug li 500W
N.W.	31kg ua		35kg ua
Laser taub hau loj	458mm x 84mm x 111mm		527mm x 102mm x 120mm
Tswj chav tsev loj	492mm x 383mm x 160mm		522mm x 460mm x 160mm
Interfaces	RS {{0}}C/USB2.0/Ethernet, I/O
Cov xwm txheej ua haujlwm	0-45 degree ; 30% -85% RH (Tsis muaj condensing)

Qhov zoo:

1. Precision Marking

Mopa laser npav tshuab muab siab precision thiab raug, zoo meej rau kev kos cov qauv tsim los yog cov cim me me ntawm ntau yam ntaub ntawv.

2. Kev cim ceev dua

Mopa thev naus laus zis tso cai rau cov cim nrawm nrawm. Qhov no ua rau Mopa laser npav tshuab zoo tagnrho rau kev tsim khoom loj thiab cov ntawv ntim siab.

3. Kev tu qis

Mopa laser marking tshuab yuav tsum tau saib xyuas tsawg, ua rau txo cov nqi khiav lag luam thiab lub sijhawm poob. Tsis tas li ntawd, Mopa lasers muaj lub neej ntev dua li cov lasers ib txwm muaj.

Daim ntawv thov:

120W Mopa Laser Marking Tshuab: Zoo meej rau cov khoom siv ABS

Yog tias koj tab tom nrhiav lub tshuab laser npav uas tuaj yeem ua haujlwm ABS cov ntaub ntawv yooj yim, ces 120W Mopa laser npav tshuab yog qhov kev daws teeb meem zoo tshaj. Lub tshuab thev naus laus zis no muaj qhov nrawm nrawm, qhov tseeb, thiab ntau yam, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau ntau hom kev lag luam. Txawm hais tias koj yuav tsum tau kos cov qauv tsim, cov lej ntawm cov khoom lag luam, lossis cov cim npe, 120W Mopa laser npav tshuab yuav pab koj ua tiav txoj haujlwm sai thiab ua tau zoo.

ABS (Acrylonitrile Butadiene Styrene) yog cov thermoplastic polymer feem ntau siv los tsim ntau yam khoom xws li cov khoom ua si, cov khoom siv hauv tsheb, thiab cov vaj tsev hauv hluav taws xob. Txawm li cas los xij, ABS yog cov khoom nyuaj rau kev kos npe vim nws qhov siab melting point thiab tsis tshua muaj zog rau laser npav. Qhov no yog qhov uas 120W Mopa laser npav tshuab tuaj yeem ua ke raws li nws tuaj yeem xa cov cim zoo thiab ruaj khov ntawm ABS cov ntaub ntawv yam tsis muaj kev puas tsuaj lossis deformation rau cov khoom.

Ib qho txiaj ntsig tseem ceeb ntawm 120W Mopa laser npav tshuab yog nws lub peev xwm los tswj lub sijhawm laser mem tes, zaus, thiab lub zog. Cov yam ntxwv no ua rau nws los kho cov teeb meem laser kom haum rau cov yam ntxwv tshwj xeeb ntawm ABS cov ntaub ntawv, ua rau cov cim meej thiab pom tseeb. Lub tshuab Mopa fiber ntau laser kuj muaj cov kab teeb pom kev zoo thiab muaj zog beam stability, uas txhais tau hais tias lub tshuab tuaj yeem xa cov cim zoo ib yam ntawm cov khoom zoo thiab qhov tseeb ntawm cov qauv tsim tshwj xeeb tshaj plaws.
